BS5153 PN16 Cast Iron Swing Check Valve

Short Description:

1.size:DN50-DN600;2’’-24’’
2.Medium:water
3.Standard:EN12334/BS5153/MSS SP-71/AWWA C508
4.Pressure:CLASS 125-300/PN10-25/200-300PSI
5.Material:CI,DI
6.Type:wafer,swing


Product Detail

Product Tags

TECHNICAL REQUIREMENT

● Design and Manufacture  Conform to EN12334、BS5153
● Flange dimensions  Conform to EN1092-2 PN16
● Face to Face  dimensions Conform to EN558-1 List 10、BS5153
● Testing Conform to  EN12266-1
● CI-GREY CAST IRON , DI-DUCTILE IRON

Specification

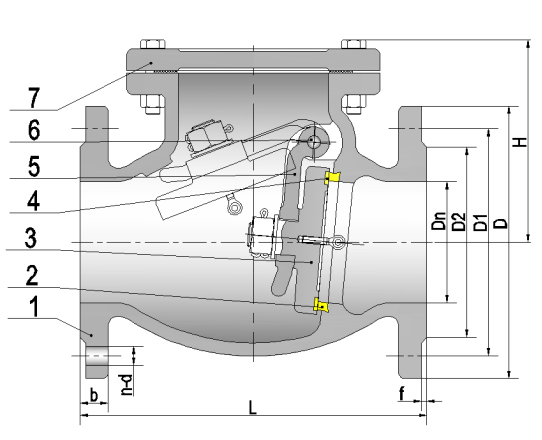

Materials of parts

products



No.

Part Name

Material

1

BODY

EN-GJL-250/EN-GJS-500-7

2

SEAT RING

ASTM B62 C83600

3

DISC

EN-GJL-250/EN-GJS-500-7

4

DISC RING

ASTM B62 C83600

5

HINGE

ASTM A536 65-45-12

6

STEM

ASTM A276 410

7

BONNET

EN-GJL-250/EN-GJS-500-7

NOTE: Above DN150 have eyebolt

Dimensions data(mm)

DN

50

65

80

100

125

150

200

250

300

350

400

450

500

600

L

203

216

241

292

330

356

495

622

699

787

914

965

1016

1219

D

CI

165

185

200

220

250

285

340

405

460

520

580

640

715

840



DI



400

455



D1

125

145

160

180

210

240

295

355

410

470

525

585

650

770

D2

99

118

132

156

184

211

266

319

370

429

480

548

609

720

b

CI

20

20

22

24

26

26

30

32

32

36

38

40

42

48



DI

19

19

19

19

19

19

20

22

24.5

26.5

28

30

31.5

36

n-d

4-19

4-19

8-19

8-19

8-19

8-23

12-23

12-28

12-28

16-28

16-31

20-31

20-34

20-37

f

3

3

3

3

3

3

3

3

4

4

4

4

4

5

H

124

129

153

170

196

259

332

383

425

450

512

702

755

856
