Electric Power Fitting Extensive Links

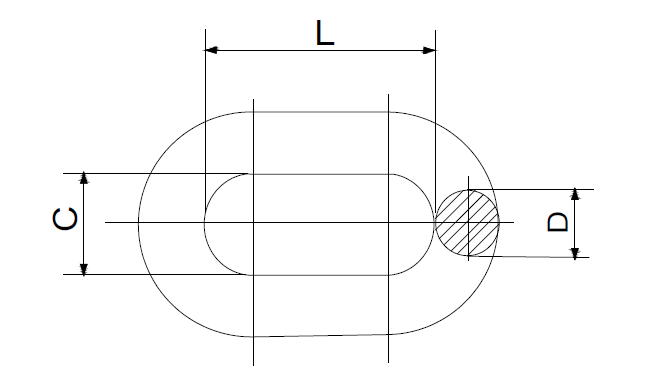

Extensive Ring
Notes:
1.Material: Drop forged steel
2.Finish:Hot dip galvanized
3.All dimensions are in mm.
4.Tolerance ±5% in all dimensions.
|
Type |
C(MM) |
D(MM) |
L(MM) |
Rated Failure Load(KN) |
Weight(kg) |
|
PH-7 |
20 |
16 |
80 |
70 |
0.4 |
|
PH-10 |
22 |
18 |
100 |
100 |
0.6 |
|
PH-12 |
24 |
20 |
120 |
120 |
0.9 |
|
PH-16 |
26 |
22 |
140 |
160 |
1.5 |
|
PH-20 |
30 |
24 |
160 |
200 |
1.6 |
|
PH-25 |
34 |
26 |
160 |
150 |
2 |
|
PH-30 |
38 |
30 |
180 |
300 |
3 |
Customization Forged steel T-connector for electric pole line
