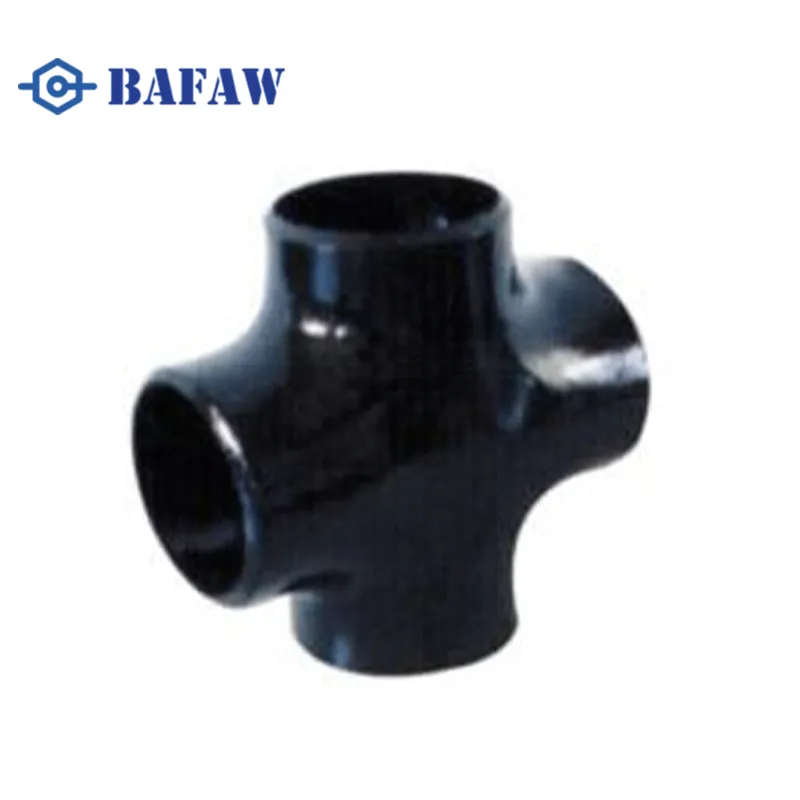

Carbon Steel Pipe Cross
Material: Carbon Steel, Stainless Steel, Alloy Steel
Technical: Forged and pushing
Connection: Welding
Standard: ANSI, ASME,AP15L,DIN,JIS,BS,GB
Supports Third-party inspection
OEM/ODM Service
BAFAW provides end-to-end support for your pipeline projects, delivering a true one-stop OEM/ODM solution that efficiently and reliably fulfills your custom requirements.
Compliance with Standards
All BAFAW’s products comply with international standards such as ASME, ANSI, DIN, and ISO. We provide comprehensive material and inspection reports to ensure worry-free project audits and safe usage.
Large or Small Order
BAFAW delivers with the same professionalism whether you need bulk production or just a few samples. Our flexible model supports rapid sampling across categories and stable large-scale customization.
Introduction
| Type: | 45°and 90°LR/SR Elbow, Reducers, Tee, Bends, Cap, Cross. |
|---|---|
| Wall Thickness: | SCH5-SCH160 XS XXS STD |
| Surface: | Black Paint/Rust-proof Oil/Hot Dipped Galvanized |
| Angles: | 30/45/60/90/180° |
| Size: | 1/2”-80”/DN15-DN2000 |
| Certificate: | ISO -9001:2000, API, CCS |
| Application: | Chemical Industry, Petroleum Industry, Construction Industry and Other |
| Inspection: | Factory In-House Check or The Third Party Inspection |
| Packing: | Plywood Pallets/ Wooden Case Or As Per your Specification |
Specifications
Pipe Size All Fittings 90 & 45 Elbows and Tees Reducers and Lap Joint Stub ends Caps Outside Diameter at Bevel, D (1) Inside Diameter at End (1) Wall Thickness t Center-to-End Dimensions A,B,C,M Overall Length, F,H Overall Length, E IN MM IN MM IN MM IN MM IN MM ½ ~ 2½ +0.06 +1.6 ±0.03 ±0.8 Not Less Than 87.5% of Nominal Thickness ±0.06 ±2 ±0.06 ±2 ±0.12 ±3 -0.03 -0.8 3 ~ 2½ ±0.06 ±1.6 ±0.06 ±1.6 4 5 ~ 8 +0.09 +2.4 ±0.25 ±6 -0.06 -1.6 10 ~ 18 +0.16 +4.0 ±0.12 ±3.2 ±0.09 ±0.09 -0.12 -3.2 20 ~ 24 +0.25 -0.19 +6.4 -4.8 ±0.19 ±4.8 26 ~ 30 ±0.12 ±3 ±0.19 ±5 ±0.38 ±10 32 ~ 48 ±0.19 ±5 Pipe Size Lap Joint Stub Ends (2) 180 Return Bends Outside Diameter of Lap, G Lap Thickness Fillet Radius of Lap, R Center-to-Center Dimension, O Back-to- Face Dimension, K Alignment of Ends, U IN MM IN MM IN MM IN MM IN MM IN MM ½ ~ 2½ +0 -0.03 +0 -1 +0.06 -0 +1.6 -0 +0 -0.03 +0 -1 ±0.25 ±6 ±0.25 ±6 ±0.03 ±1 3 ~ 2½ 4 +0 -0.06 +0 -2 5 ~ 8 10 ~ 18 +0 -0.06 +0 -2 +0.12 -0 +3.2 -0 ±0.38 ±10 ±0.06 ±2 20 ~ 24 Pipe Size Off Angle, Q Off Plane, P IN MM IN MM ½ ~ 4 ± 0.03 ± 1 ± 0.06 ± 2 5 ~ 8 ± 0.06 ± 2 ± 0.12 ± 4 10 ~ 12 ± 0.09 ± 0.19 ± 5 14 ~ 16 ± 3 ± 0.25 ± 6 18 ~ 24 ± 0.12 ± 4 ± 0.38 ± 10 26 ~ 30 ± 0.19 ± 5 32 ~ 42 ± 0.50 ± 13 44 ~ 48 ± 0.75 ± 19 NOTES:
(1)Out-of-round is the sum of absolute values of plus and minus tolerances.
(2)Outside diameter of barrel see the table on page 15.
