Fce Repair Clamp

OEM/ODM Service
BAFAW supports your piping projects end-to-end: from selecting pipe materials that match pressure and temperature requirements, to optimizing joint strength and sealing performance. We provide corrosion-resistant surface finishes, ensure compatibility across standards, improve flow efficiency, and customize connection dimensions, as well as supporting accessories. With BAFAW, you receive reliable pipe fitting solutions and continuous technical support throughout your project.
Compliance with Standards
All BAFAW’s products comply with international standards such as ASME, ANSI, DIN, and ISO. We provide comprehensive material and inspection reports to ensure worry-free project audits and safe usage.
Large or Small Order
Whether you have a long term project that requires bulk deliveries or a small order with just a few samples, BAFAW will support you with the same professionalism and responsiveness.

Our flexible production model enables the rapid sampling of multiple categories and small quantities, as well as the stable production of large-scale customized parts. From engineering evaluation and process selection to sampling, quality control, and shipping, our team works efficiently together to ensure consistent and reliable delivery, regardless of the order size.

Serial Number	Name	Material	Quantity
1	Bolt	SS304	N
2	Outer Steel Plate	SS304	2
3	Rubber Sleeve	EPDM	1
4	Threaded Rod	SS304	1
5	Guard Plate	SS304	2
6	Nut Rod	SS304	1

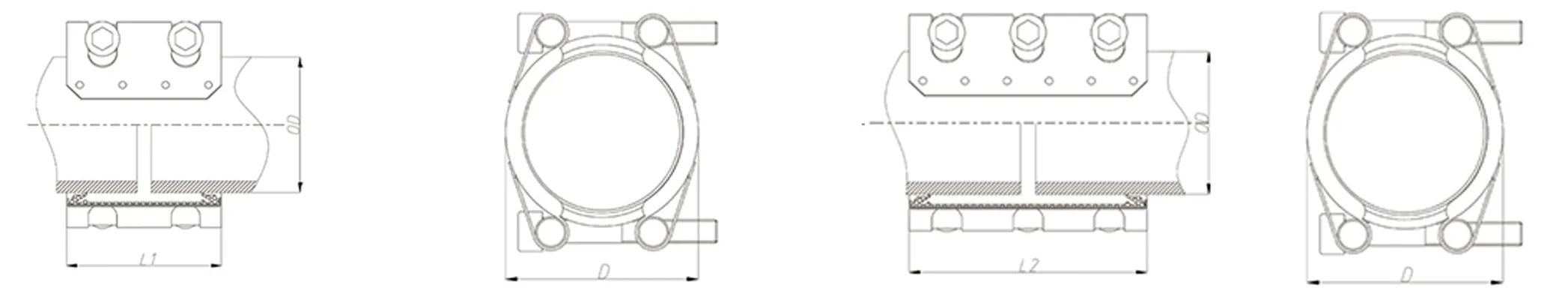

Pipe Outer Diameter OD (mm)	Pipe Diameter Range ODmin-ODmax (mm)	Marine Nominal Pressure PN (bar)	Dimensions				Bolts （M）	Bolt Torque (Nm)
Pipe Outer Diameter OD (mm)	Pipe Diameter Range ODmin-ODmax (mm)	Marine Nominal Pressure PN (bar)	A(mm)	L1(mm)	L2(mm)	D (mm)	Bolts （M）	Bolt Torque (Nm)
44.5	44-45.1	16	10	57	100	65	6	15
48.6	47-49	16	10	57	100	70	6	15
54	53.5-54.6	16	10	57	100	70	8	30
57	56.3-577	16	10	57	100	80	8	30
60.3	59-62	16	10	80	139	85	8	30
63	62.2-63.9	16	10	80	139	85	8	30
76.1	75-78	16	10	80	139	100	8	30
79.9	78.8-80.8	16	10	80	139	100	8	30
88.9	88-92	16	10	107	203	110	10	30
108	106-110	16	10	107	203	130	10	50
110	108.9-111.2	16	10	107	203	130	10	50
114.3	112-116	16	10	107	203	135	10	50
118	116.6-119.2	16	10	107	203	140	10	50
125	123.6-126.5	16	10	107	203	150	10	50
133	131.5-134.4	16	10	107	203	160	10	50
140	137-143	16	10	116	203	165	12	50
159	157-161	16	10	116	203	185	12	80
165.2	163.3-166.7	16	10	116	203	190	12	80
168	166-170	16	10	116	203	195	12	80
170	168.2-171.9	16	10	116	203	195	12	80
200	198.2-201.5	16	15	155	255	240	14	80
219	217-221	10	15	155	255	250	14	80
250	250-254	10	15	155	255	285	14	100
273	271-275	10	15	155	255	305	14	100
315	313-317	10	15	155	255	340	14	100
325	323-327	10	15	155	255	360	14	100
355.6	354-358	10	15	155	255	385	14	100
377	375-379	10	15	155	255	410	14	100
400	398-402	10	15	155	255	430	14	100
426	424-428	10	15	155	255	460	14	100
450	447-452	10	15	155	255	490	14	100
480	478-482	10	15	155	255	510	14	120
500	498-502	10	15	155	255	530	14	120
508	506-510	10	15	155	255	540	14	120
