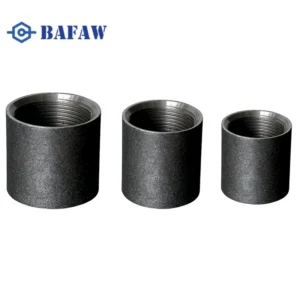

Black Steel Merchant Coupling removebg preview

Galvanized Steel Merchant Coupling

American Standard: ASTM A865
British Standard: BS EN10241
DIN Standard: DIN2999
Type of pipe: Welded or Seamless pipe
Surface treatment: Black, Hot galvanized, Electro galvanized
Packing: Packed in standard export cartons, then on pallets.
Applications range: Convey Water, Oil, Gas, Steam and so on.

Supports Third-party inspection

Enquire Now Send E-mail

OEM/ODM Service

BAFAW provides end-to-end support for your pipeline projects, delivering a true one-stop OEM/ODM solution that efficiently and reliably fulfills your custom requirements.

Compliance with Standards

All BAFAW’s products comply with international standards such as ASME, ANSI, DIN, and ISO. We provide comprehensive material and inspection reports to ensure worry-free project audits and safe usage.

Large or Small Order

BAFAW delivers with the same professionalism whether you need bulk production or just a few samples. Our flexible model supports rapid sampling across categories and stable large-scale customization.

Specifications

ASTM A865 AMERICAN STANDARD STEEL MERCHANT COUPLING

SIZE	1/8	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2
Outside Diam	0.563	0.719	0.875	1.063	1.313	1.576	1.9	2.2
Length	3/4	1 1/8	1 1/8	1 1/2	1 9/16	1 15/16	2	2
Threads	NPSL	NPSL	NPSL	NPSL	NPSL	NPSL	NPSL	NPSL

SIZE	2	2 1/2	3	3 1/2	4	5	6
Outside Diam	2.75	3.25	4	4.625	5	6.296	7.39
Length	2 1/16	3 1/16	3 3/16	3 5/16	3 7/16	3 11/16	3 15/16
Threads	NPT	NPT	NPT	NPT	NPT	NPT	NPT

BS EN10241 BRITISH STANDARD STEEL MERCHANT COUPLING

SIZE	8	10	15	20	25	32	40	50
Min. Outside Diam	18.5	22	27	32.5	39.5	49	56	68
Min. Length	27	28	37	39	46	51	51	60
Size	65	80	100	125	150
Min. Outside Diam	84	98	124	151	178
Min. Length	69	75	87	96	96

DIN 2999 DIN STANDARD STEEL MERCHANT COUPLING

Size		6	8	10	15	20	25	32
Standard	Min. Outside Dia	15	18.5	21.3	26.6	31.8	39.5	48.3
	Length(mm)	17	25	26	34	36	43	48
Half	Min. Outside Dia	15	18.5	21.3	26.6	31.8	39.5	48.3
	Length(mm)	8	11	12	15	17	20	22

Size		40	50	65	80	100	125	150
Standard	Min. Outside Dia	54.5	66.2	82	95	121.4	146.3	173.3
	Length(mm)	48	56	65	71	83	92	92
Half	Min. Outside Dia	54.5	68	84.2	98.4	124	149	177
	Length(mm)	22	26	30	34	40	44	44
