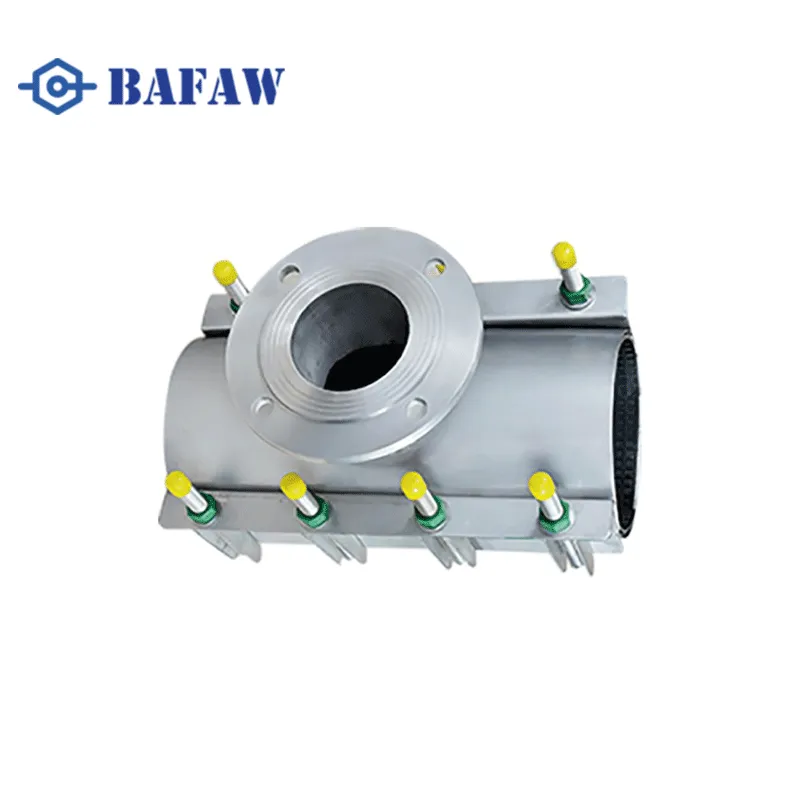

Multi Function Fast Shunt Tee

Supports Third-party inspection

Transparent pricing

Plate Repair Tool Instructions
The muli-funcional diversion e is an economical and easy-to-instalfing with a wide range of apications, sutable for quick diversion of water supy,dranage, o,gas,and other pipemesOurcompany’s mul!-funcional auick dhersiontees recure ony a common wrench for rapid instalation and have minimal eaurements on the constucion envlronmen. Branch conecionmethods nclude: straight-through intemalthreaded itinas, straiqh-throug extemalthreaded itinas, and lanae lilnas, Ourmull-funclonaldhersion ees are characierczed by the widrange of appicable pipe diameters; for the same nominal diameter, they can meet the installation needs of various pipe materials,greatly reducing customer irventory and offering highinstallation flexibility

Multi Function Fast Shunt Tee measage 02

Serial Number Name Material Quantity
1 Fasteners SS304 N
2 Pressure plate SS304 2
3 Tee flange SS304 1
4 Guard Plate SS304 N
5 Outer Steel Plate SS304 1
6 Rubber Sleeve EPDM 1
7 Guard Plate SS304 N



Main pipe nominal diameter Applicable pipe diameter Branch flange dia meter and length
300 400 500 600 800 1000
DN50 DN65 DN80 DN100 DN150 DN200 DN250 DN300 DN350 DN400 DN500 DN600
DN50 59-67
DN65 69-76
DN80 88-110
DN100 108-128
DN100 114-134
DN125 133-155
DN150 158-180
DN150 190-210
DN200 200-222
DN200 216-238
DN225 240-260
DN250 250-274
DN300 314-334
DN350 350-368
DN350 360-380
DN400 404-424
DN400 414-434
DN450 435-455
DN450 468-488
DN500 514-534
DN500 545-575
DN600 608-638
DN700 708-738
DN700 728-758
DN750 748-778
DN750 768-798
DN800 813-843
DN900 914-946
DN1000 1016-1048
DN1100 1118-1158
DN1200 1219-1269
