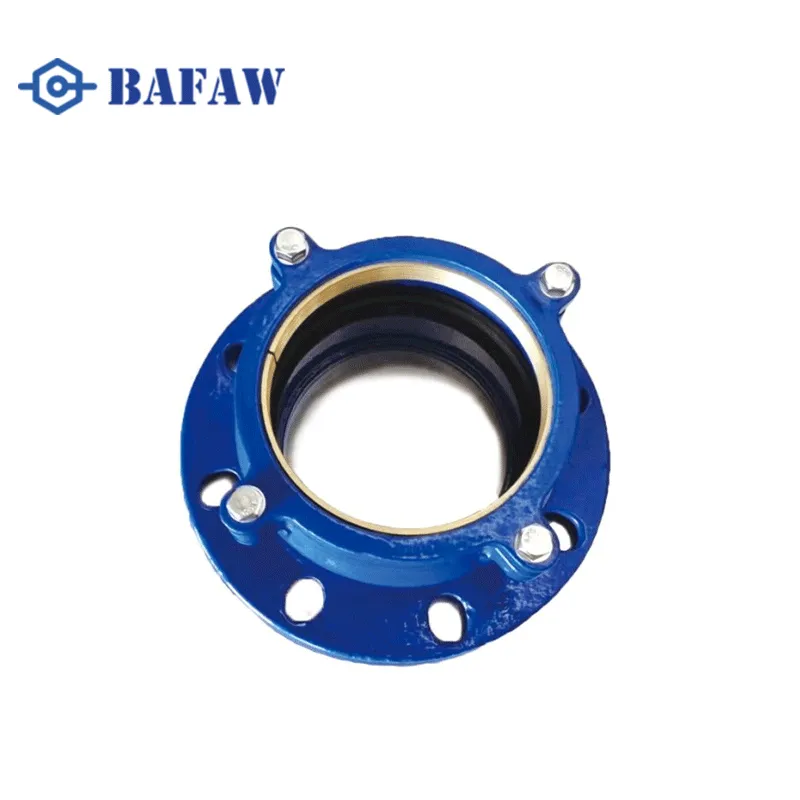

Pe Flange Adaptor

OEM/ODM Service
BAFAW supports your piping projects end-to-end: from selecting pipe materials that match pressure and temperature requirements, to optimizing joint strength and sealing performance. We provide corrosion-resistant surface finishes, ensure compatibility across standards, improve flow efficiency, and customize connection dimensions, as well as supporting accessories. With BAFAW, you receive reliable pipe fitting solutions and continuous technical support throughout your project.
Compliance with Standards
All BAFAW’s products comply with international standards such as ASME, ANSI, DIN, and ISO. We provide comprehensive material and inspection reports to ensure worry-free project audits and safe usage.
Large or Small Order
Whether you have a long term project that requires bulk deliveries or a small order with just a few samples, BAFAW will support you with the same professionalism and responsiveness.

Our flexible production model enables the rapid sampling of multiple categories and small quantities, as well as the stable production of large-scale customized parts. From engineering evaluation and process selection to sampling, quality control, and shipping, our team works efficiently together to ensure consistent and reliable delivery, regardless of the order size.

Supports Third-party inspection

Transparent pricing

Enquire Now Send E-mail

Briets
-Connection for HDPE pipe
-Working pressure PN10/16
-Maximum temperature -10’C to + 70°C
-Suitable for portable water neutral liquide and sewage
-WRAS approved.

Standards
-Flange: EN 1092-2
-Coating: EN30677
-Test:EN 12266-1.

Features
-Corrosion resistant construction

Options
-Flange drilling with BS or ANSI standard
-A2-70.A4-80
-Various coating
-Seal: NBR etc.

The product is used to connect PE pine with metal pine or valve, flowmeter, pressure gauge and other auxiliary equipment. The sealing method adopts socket type, and theThe product is used to connect PE pipe with metal pipe or valve.dovetailgroove design ofsealing ruber ring has very good sealing perormance, which can meet the seaing presure of2.5Mpa at most. A metallockingring is set at the so
cket end to realize the encircing locking ofthe pieine throuph bolt pre tihtening, whichas high tensle and pressure resistance pertormance. The tlange end is designed as PN10 / 16 universal driling hole, which can be connected with PN10 or PN16 flange at wil to faclitate pipeline installation and reduce inventory.

Serial Number	Name	Material	Quantity
1	Gland Cap	GJS450-12	1
2	Copper Ring	CuZn39Pb2	1
3	Bolt	GD4.8	N
4	Rubber Ring	EPDM	1
5	Flange Body	GJS450-12	1

DN	∅pipe A	∅D	∅K	C	L	E	Bolt
DN	∅pipe A	∅D	∅K	C	L	E	Quantity	Thread
50	63	165	125	19	90	80	4	M16
60	63	175	135	19	90	80	4	M16
60	75	175	135	19	92	82	4	M16
65	63	185	145	19	90	80	4	M16
65	75	185	145	19	92	82	4	M16
80	63	200	160	19	90	80	8	M16
80	75	200	160	19	92	82	8	M16
80	90	200	160	19	95	85	8	M16
100	90	220	180	19	95	85	8	M16
100	110	220	180	19	95	85	8	M16
100	125	220	180	19	97	87	8	M16
125	110	250	210	19	95	85	8	M16
125	125	250	210	19	97	87	8	M16
125	140	250	210	19	103	93	8	M16
125	160	250	210	19	145	no	8	M16
150	140	285	240	19	103	93	8	M20
150	160	285	240	19	115	105	8	M20
150	180	285	240	19	125	115	8	M20
200	200	340	295	20	135	125	8	M20
200	225	340	295	20	138	128	8	M20
200	250	340	295	20	225	145	8	M20
250	250	400	350	22	155	145	12	M20
250	280	400	350	22	158	148	12	M20
300	315	455	400	25	184	174	12	M20
300	355	455	400	25	277	237	12	M20
400	400	565	515	25	242	230	16	M24
400	450	565	515	25	302	260	16	M24
500	500	715	620	32	365	346	20	M24
500	560	715	620	32	450	372	20	M24
600	630	840	725	36	459	399	20	M27
