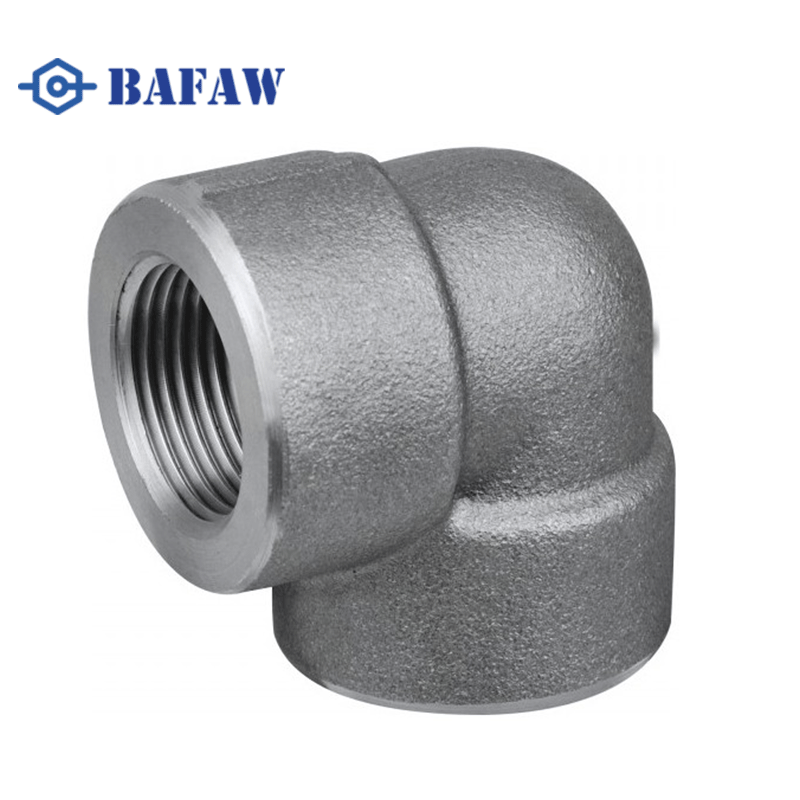

Stainless Steel 90 Degree Elbow
Material: Stainless Steel, Alloy Steel
Technical: Forged and pushing
Connection: Welding
Standard: ANSI, ASME,AP15L,DIN,JIS,BS,GB
Supports Third-party inspection
OEM/ODM Service
BAFAW provides end-to-end support for your pipeline projects, delivering a true one-stop OEM/ODM solution that efficiently and reliably fulfills your custom requirements.
Compliance with Standards
All BAFAW’s products comply with international standards such as ASME, ANSI, DIN, and ISO. We provide comprehensive material and inspection reports to ensure worry-free project audits and safe usage.
Large or Small Order
BAFAW delivers with the same professionalism whether you need bulk production or just a few samples. Our flexible model supports rapid sampling across categories and stable large-scale customization.
Introduction
| Type: | 45°and 90°LR/SR Elbow, Reducers, Tee, Bends, Cap, Cross. |
|---|---|
| Wall Thickness: | SCH5-SCH160 XS XXS STD |
| Surface: | Black Paint/Rust-proof Oil/Hot Dipped Galvanized |
| Angles: | 30/45/60/90/180° |
| Size: | 1/2”-80”/DN15-DN2000 |
| Certificate: | ISO -9001:2000, API, CCS |
| Application: | Chemical Industry, Petroleum Industry, Construction Industry and Other |
| Inspection: | Factory In-House Check or The Third Party Inspection |
| Packing: | Packing: Plywood Pallets/ Wooden Case Or As Per your Specification |
Specifications
Size: 1/8″-4″(6mm-100mm) Specification: Dim. Spec: ANSI B16.11 , MSS SP-79 Material Spec: ASTM A105 , Stainless Steel304, SS304L, SS316, SS316L Size of raw material: DIA. 19-85MM Round Bar Type: Elbow, Cross, Street Elbow, Tee, Boss, Coupling, Half Coupling, Cap,Plug, Bushing, Union, Swage Nipple, Bull Plug, Reduced Insert, Pipe Nipple etc. Connection Type: Socket-Weld and Threaded (NPT, BSP) Rating: 2000LBS, 3000LBS, 6000LBS, 9000LBS. Marking: 1.Carbon and alloy steel: marked by stamping. 2.Stainless:Marked by electro-etched or jet printed or stamped 3.3/8″ under: brand only 4.1/2″ to 4″: marked brand. material. heat no. b16 (blong to ANSI B16. 11 product),pressure and size. Packing: Carton/ Plywood cases Nominal Pipe Size 90 DEGREE Elbow, TEE, Cross 45 DEGREE Elbow All Fittings Center to End Center to End Outside Diameter of Band Minimum Wall Thickness Length of Thread Min A G D C DN NPS SCH80 2000 SCH160 3000 XXS 6000 SCH80 2000 SCH160 3000 XXS 6000 SCH80 2000 SCH160 3000 XXS 6000 SCH80 2000 SCH160 3000 XXS 6000 B L2 6 1/8 21 21 25 17 17 19 22 22 25 3.18 3.18 6.35 6.4 6.7 8 1/4 21 25 28 17 19 22 22 25 33 3.18 3.3 6.6 8.1 10.2 10 3/8 25 28 33 19 22 25 22 33 38 3.18 3.51 6.98 9.1 10.4 15 1/2 28 33 38 22 25 28 33 38 46 3.18 4.09 8.15 10.9 13.6 20 3/4 33 38 44 25 28 33 38 46 56 3.18 4.32 8.53 12.7 13.9 25 1 38 44 51 28 33 35 46 56 62 3.68 4.98 9.93 14.7 17.3 32 1 1/4 44 51 60 33 35 43 56 62 75 3.89 5.28 10.59 17 18 40 1 1/2 51 60 64 35 43 44 62 75 84 4.01 5.56 11.07 17.8 18.4 50 2 60 64 83 43 44 52 75 84 102 4.27 7.14 12.09 19 19.2 65 2 1/2 76 83 95 52 52 64 92 102 121 5.61 7.65 15.29 23.6 28.9 80 3 86 95 106 64 64 79 109 121 146 5.99 8.84 16.64 25.9 30.5 100 4 106 114 114 79 79 79 146 152 152 6.55 11.18 18.67 27.7 33
