Your most trusted one-stop Stainless Steel Half Couplings manufacturer
Product Categories

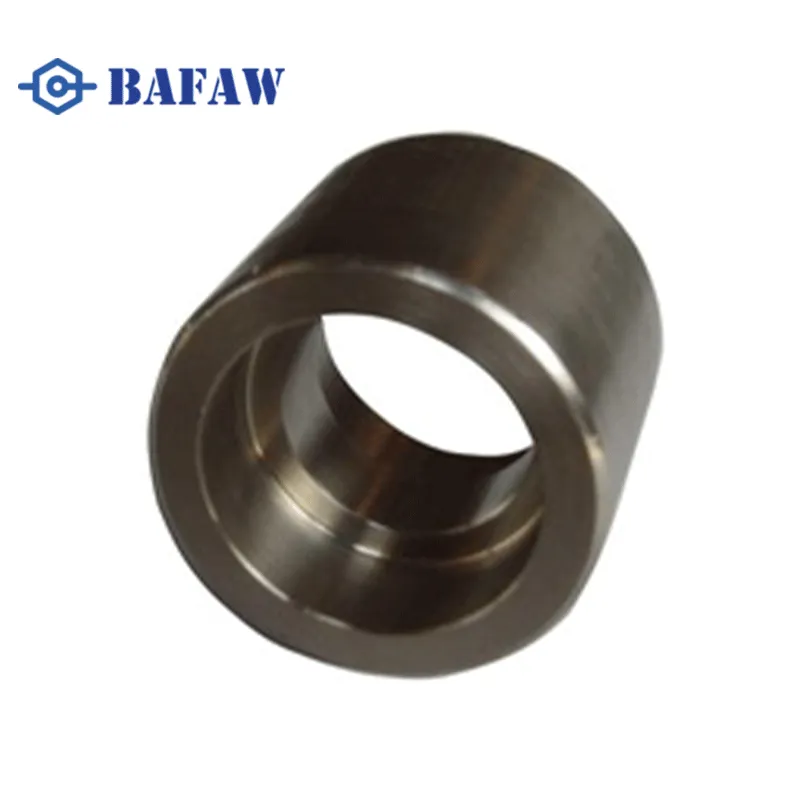

Stainless Steel Half Couplings
Brand : BAFAW
Product origin : China
Delivery time : 30 Days
Supply capacity : 100000000 Piece/Pieces Per Year
Supports Third-party inspection
OEM/ODM Service
BAFAW provides end-to-end support for your pipeline projects, delivering a true one-stop OEM/ODM solution that efficiently and reliably fulfills your custom requirements.
Compliance with Standards
All BAFAW’s products comply with international standards such as ASME, ANSI, DIN, and ISO. We provide comprehensive material and inspection reports to ensure worry-free project audits and safe usage.
Large or Small Order
BAFAW delivers with the same professionalism whether you need bulk production or just a few samples. Our flexible model supports rapid sampling across categories and stable large-scale customization.
Introduction
| Size: | 1/8″-4″(6mm-100mm) |
|---|---|
| Specification: | Dim. Spec: ANSI B16.11 , MSS SP-79 |
| Material Spec: | ASTM A105 , Stainless Steel304, SS304L, SS316, SS316L |
| Size of raw material: | DIA. 19-85MM Round Bar |
| Type: | Elbow, Cross, Street Elbow, Tee, Boss, Coupling, Half Coupling, Cap,Plug, Bushing, Union, Swage Nipple, Bull Plug, Reduced Insert, Pipe Nipple etc. |
| Connection Type: | Socket-Weld and Threaded (NPT, BSP) |
| Rating: | 2000LBS, 3000LBS, 6000LBS, 9000LBS. |
| Marking: | 1.Carbon and alloy steel: marked by stamping. |
| 2.Stainless:Marked by electro-etched or jet printed or stamped | |
| 3.3/8″ under: brand only | |
| 4.1/2″ to 4″: marked brand. material. heat no. b16 (blong to ANSI B16. 11 product),pressure and size. | |
| Paking: | Carton/ Plywood cases |
Specifications
Nominal Pipe Size Coupling Caps All Fittings End to End End to End End Wall Thickness Outside Diameter of Band Length of Thread Min E F C min D DN NPS SCH160, XXS, 3000, 6000 SCH160 3000 XXS 6000 SCH160 3000 XXS 6000 SCH160 3000 XXS 6000 B L2 6 1/8 32 19 4.8 16 22 6.4 6.7 8 1/4 35 25 27 4.8 6.4 19 25 8.1 10.2 10 3/8 38 25 27 4.8 6.4 22 32 9.1 10.4 15 1/2 48 32 33 6.4 7.9 28 38 10.9 13.6 20 3/4 51 37 38 6.4 7.9 35 44 12.7 13.9 25 1 60 41 43 9.7 11.2 44 57 14.7 17.3 32 1 1/4 67 44 46 9.7 11.2 57 64 17.0 18.0 40 1 1/2 79 44 48 11.2 12.7 64 76 17.8 18.4 50 2 86 48 51 12.7 15.7 78 92 19.0 19.2 65 2 1/2 92 60 64 15.7 19.0 92 108 23.6 28.9 80 3 108 65 68 19.0 22.4 106 127 25.9 30.5 100 4 121 68 75 22.4 28.4 140 159 27.7 33.0
