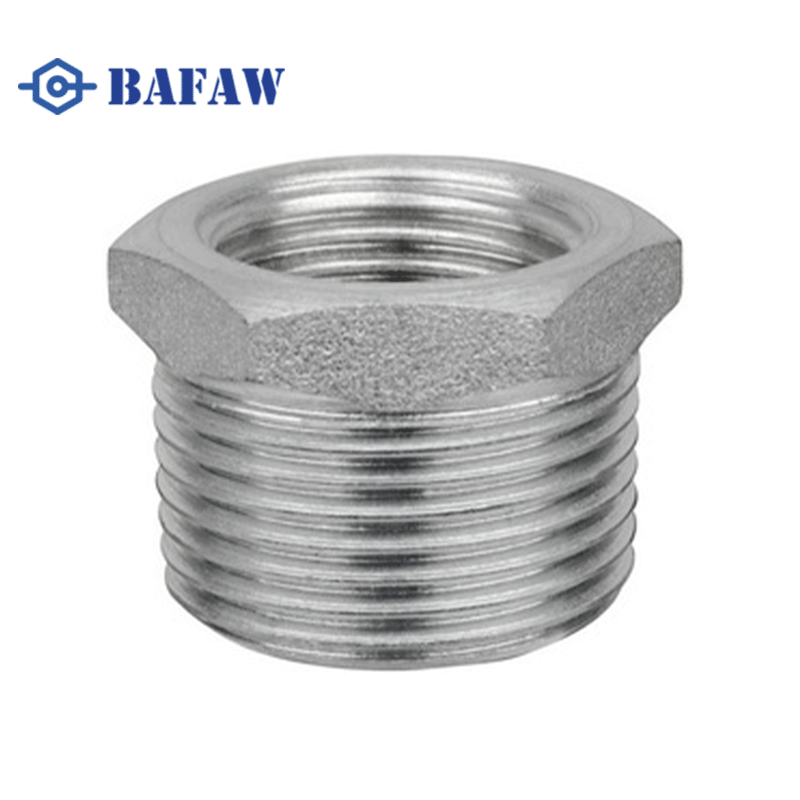

Stainless Steel HEX HEAD BUSHING
Find customizable Hex Bushing Fitting, ANSI forged fitting, NPT A105 forged fitting, ASME forged fitting from professional manufacturers, click below to inquire about price.
Supports Third-party inspection
OEM/ODM Service
BAFAW provides end-to-end support for your pipeline projects, delivering a true one-stop OEM/ODM solution that efficiently and reliably fulfills your custom requirements.
Compliance with Standards
All BAFAW’s products comply with international standards such as ASME, ANSI, DIN, and ISO. We provide comprehensive material and inspection reports to ensure worry-free project audits and safe usage.
Large or Small Order
BAFAW delivers with the same professionalism whether you need bulk production or just a few samples. Our flexible model supports rapid sampling across categories and stable large-scale customization.
Introduction
| Size: | 1/8″-4″(6mm-100mm) |
|---|---|
| Specification: | Dim. Spec: ANSI B16.11 , MSS SP-79 |
| Material Spec: | ASTM A105 , Stainless Steel304, SS304L, SS316, SS316L |
| Size of raw material: | DIA. 19-85MM Round Bar |
| Type: | Socketolet, Threadolet, weldolet, elboltes, latrolet. |
| Connection Type: | Socket-Weld and Threaded (NPT, BSP) |
| Rating: | 2000LBS, 3000LBS, 6000LBS, 9000LBS. |
| Marking: | 1.Carbon and alloy steel: marked by stamping. |
| 2.Stainless:Marked by electro-etched or jet printed or stamped | |
| 3.3/8″ under: brand only | |
| 4.1/2″ to 4″: marked brand. material. heat no. b16 (blong to ANSI B16. 11 product),pressure and size. | |
| Packing: | Carton/ Plywood cases |
Specifications
Nominal Pipe Size Length Square Head Plugs Round Head Plugs Hex Plugs and Bushings Height of Square Width Flats Nominal Diameter of Head Length Width Flats (Nominal) Hex Height DN NPS L2 min B min C min D L min S K min H min 6 1/8 10 6 7 10 35 11 6.0 8 1/4 11 6 10 14 41.0 16 3.0 6.0 10 3/8 13 8 11 18 41.0 18 4.0 8.0 15 1/2 14 10 14 21 44.0 22 5.0 8.0 20 3/4 16 11 16 27 44.0 27 5.0 10.0 25 1 19 13 21 33 51.0 36 6.0 10.0 32 1 1/4 21 14 24 43 51.0 46 7.0 14.0 40 1 1/2 21 16 28 48 51.0 50 8.0 16.0 50 2 22 17 32 60 64.0 65 9.0 18.0 65 2 1/2 27 19 36 73 70.0 75 10.0 19.0 80 3 28 21 41 89.0 70.0 90 10.0 21.0 100 4 32 25 65 114 76.0 115 13.0 25.0
