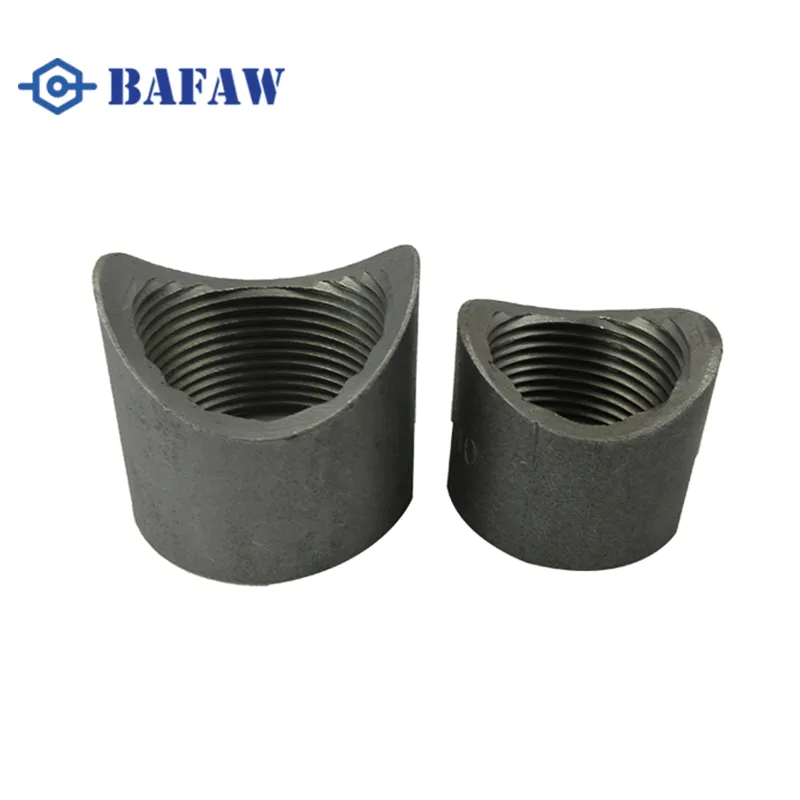

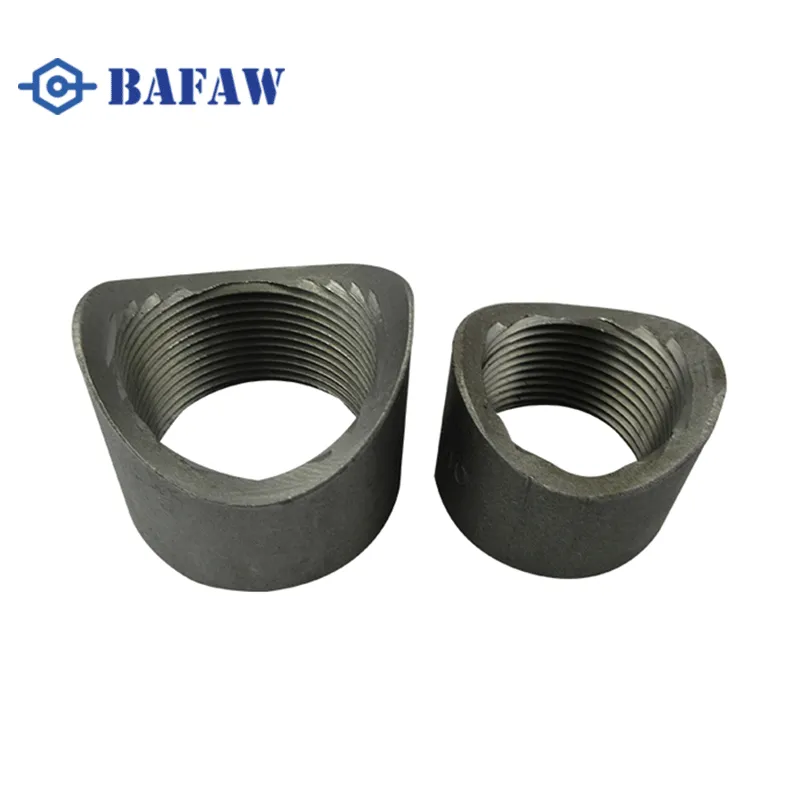

Threaded Welding Outlets

Threaded Welding Outlets are efficient and reliable components designed for industrial pipe connections. Widely used in industries such as petroleum, natural gas, and chemical engineering, these outlets accommodate different pipe diameters and pressure ratings. For product details please feel free to contact below:

Supports Third-party inspection

Enquire Now Send E-mail

OEM/ODM Service

BAFAW provides end-to-end support for your pipeline projects, delivering a true one-stop OEM/ODM solution that efficiently and reliably fulfills your custom requirements.

Compliance with Standards

All BAFAW’s products comply with international standards such as ASME, ANSI, DIN, and ISO. We provide comprehensive material and inspection reports to ensure worry-free project audits and safe usage.

Large or Small Order

BAFAW delivers with the same professionalism whether you need bulk production or just a few samples. Our flexible model supports rapid sampling across categories and stable large-scale customization.

Introduction

Threaded welding outlets are crucial fittings used in piping systems to create branch connections, enabling the addition of piping or devices. These outlets are welded onto pipes and feature threaded openings for secure connections.

Available in various sizes and materials, like carbon steel and stainless-steel, they are designed to withstand high pressures and harsh environments. Commonly used in industries like oil and gas, water treatment, and manufacturing, threaded welding outlets help with the safe and efficient circulation of fluids, making them important elements in many piping applications.

Specifications

Grooved Outlet Size		L	Header for Pipe Size		H	D1	D	T	Approx Weight
(inch)	(mm)	(inch)	(inch)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
1 1/4	32	3.369	1	32	76	35	42	3.6	0.125
		3.297	1 1/2	40
		3.221	2	50
		3.176	2 1/2	65
		3.142	3	80
		3.108	4	100
		3.087	5	125
		3.073	6	150
		3.056	8	200
1 1/2	40	3.446	1 1/2	40	76	41	48	3.7	0.2
		3.314	2	50
		3.246	2 1/2	65
		3.196	3	80
		3.149	4	100
		3.119	5	125
		3.099	6	150
		3.076	8	200
2	50	3.602	2	50	76	53	60	3.9	0.35
		3.438	2 1/2	65
		3.338	3	80
		3.251	4	100
		3.199	5	125
		3.165	6	150
		3.126	8	200
2-1/2	65	3.701	2 1/2	65	76	67	76	5.25	0.7
		3.525	3	80
		3.379	4	100
		3.296	5	125
		3.244	6	150
		3.185	8	200
3	80	3.961	3	80	76	78	89	5.5	0.9
		3.631	4	100
		3.480	5	125
		3.391	6	150
		3.293	8	200
4	100	5.316	4	100	102	102	114	6	1.5
		4.898	5	125
		4.708	6	150
		4.517	8	200
6	150	5.233	6	150	102	154	168	7.1	3.1
6	150	4.856	8	200	102	154	168	7.1	3.1
8	200	6.973	8	200	102	203	219	8.2	5.3
