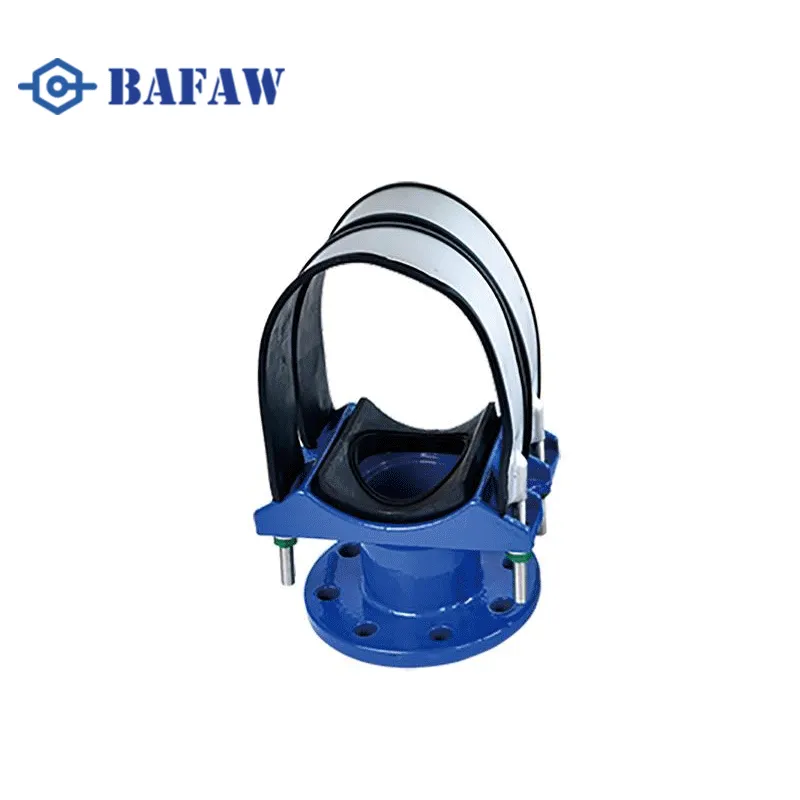

Universal Saddle Clamp

OEM/ODM Service
BAFAW supports your piping projects end-to-end: from selecting pipe materials that match pressure and temperature requirements, to optimizing joint strength and sealing performance. We provide corrosion-resistant surface finishes, ensure compatibility across standards, improve flow efficiency, and customize connection dimensions, as well as supporting accessories. With BAFAW, you receive reliable pipe fitting solutions and continuous technical support throughout your project.
Compliance with Standards
All BAFAW’s products comply with international standards such as ASME, ANSI, DIN, and ISO. We provide comprehensive material and inspection reports to ensure worry-free project audits and safe usage.
Large or Small Order
Whether you have a long term project that requires bulk deliveries or a small order with just a few samples, BAFAW will support you with the same professionalism and responsiveness.

Our flexible production model enables the rapid sampling of multiple categories and small quantities, as well as the stable production of large-scale customized parts. From engineering evaluation and process selection to sampling, quality control, and shipping, our team works efficiently together to ensure consistent and reliable delivery, regardless of the order size.

Applicable pipe diameter OD	Specifications	0d	K	N	C
75-98	DN80*50	50	125	4	19
97-118	DN100*50	50	125	4	19
	DN100*65	65	145	4	19
	DN100*80	80	160	8	19
126-148	DN125*50	50	125	4	19
	DN125*65	65	145	4	19
	DN125*80	80	160	8	19
	DN125#100	100	180	8	19
158-177	DN150*50	50	125	4	19
	DN150*65	65	145	4	19
	DN150#80	80	160	8	19
	DN150*100	100	180	8	19
206-233	DN200*50	50	125	4	19
	DN200*65	65	145	4	19
	DN200*80	80	160	8	19
	DN200U00	100	180	8	19
	DN200*125	125	210	8	19
	DN200-150	150	240	8	23
260-286	DN250*50	50	125	4	19
	DN250*65	65	145	4	19
	DN250*80	80	160	8	19
	DN250*100	100	180	8	19
	DN250H25	125	210	8	19
	DN250T50	150	240	8	23
	DN250*200	200	295	12	23
313-338	DN300*50	50	125	4	19
	DN300,65	65	145	4	19
	DN300*80	80	160	8	19
	DN300*100	100	180	8	19
	DN300T25	125	210	8	19
	DN300*150	150	240	8	23
	DN300*200	200	295	12	23
344-372	DN350*50	50	125	4	19
	DN350*65	65	145	4	19
	DN350*80	80	160	8	19
	DN350-100	100	180	8	19
	DN350*125	125	210	8	19
	DN350*150	150	240	8	23
	DN350*200	200	295	12	23
	DN350*250	250	355	12	28

Applicable pipe diameter OD	Specifications	0d	K	N	C
418-443	DN400*50	50	125	4	19
	DN400*65	65	145	4	19
	DN400*80	80	160	8	19
	DN400*100	100	180	8	19
	DN400*125	125	210	8	19
	DN400*150	150	240	8	23
	DN400*200	200	295	12	23
	DN400*250	250	355	12	28
	DN400*300	300	410	12	28
510-544	DN500*50	50	125	4	19
	DN500*65	65	145	4	19
	DN500*80	80	160	8	19
	DN500*100	100	180	8	19
	DN500U25	125	210	8	19
	DN500*150	150	240	8	23
	DN500*200	200	295	12	23
	DN500*250	250	355	12	28
	DN500-300	300	410	12	28
	DN500*350	350	470	16	28
	DN500M00	400	525	16	31
610-647	DN600*50	50	125	4	19
	DN600*65	65	145	4	19
	DN600#80	80	160	8	19
	DN600T00	100	180	8	19
	DN600*125	125	210	8	19
	DN600*150	150	240	8	23
	DN600*200	200	295	12	23
	DN600*250	250	355	12	28
	DN600*300	300	410	12	28
	DN600*350	350	470	16	28
	DN600M00	400	525	16	31
	DN600*450	450	585	20	31
	DN600*500	500	650	20	34
710-744	DN700*50	50	125	4	19
	DN700465	65	145	4	19
	DN700*80	80	160	8	19
	DN700*100	100	180	8	19
	DN700-125	125	210	8	19
	DN700*150	150	240	8	23
	DN700*200	200	295	12	23

Applicable pipe diameter OD	Specifications DN700*250	0d 250	K 355	N 12	C 28
710-744	DN700*300	300	410	12	28
	DN700*350	350	470	16	28
	DN700M00	400	525	16	31
	DN700M50	450	585	20	31
	DN700w500	500	650	20	34
	DN700*600	600	770	20	37
820-855	DN800*50	50	125	4	19
	DN800*65	65	145	4	19
	DN800*80	80	160	8	19
	DN800*100	100	180	8	19
	DN800*125	125	210	8	19
	DN800*150	150	240	8	23
	DN800*200	200	295	12	23
	DN800*250	250	355	12	28
	DN800*300	300	410	12	28
	DN800*350	350	470	16	28
	DN800M00	400	525	16	31
	DN800M50	450	585	20	31
	DN800*500	500	650	20	34
	DN800*600	600	770	20	37
	DN800-700	700	840	24	37
1025-1055	DN1000*50	50	125	4	19
	DN1000*65	65	145	4	19
	DN1000*80	80	160	8	19
	DN1000* 100	100	180	8	19
	DN1000*125	125	210	8	19
	DN1000* 150	150	240	8	23
	DN1000*200	200	295	12	23
	DN1000*250	250	355	12	28
	DN1000-300	300	410	12	28
	DN1000*350	350	470	16	28
	DN1000M00	400	525	16	31
	DN1000M50	450	585	20	31
	DN1000*500	500	650	20	34
	DN1000*600	600	770	20	37
	DN1000*700	700	840	24	37
	DN1000*800	800	950	24	41
