Precast Lifting System Rubber Formers

Product Detail

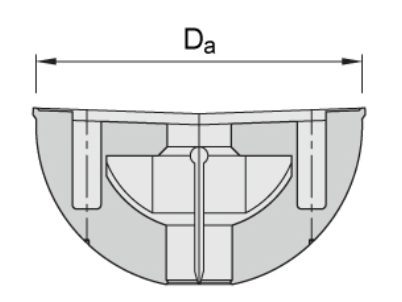

Ring Clutch

Product Code	Load Group	Height	Width	Hole Dia.
	(Kg)	(mm)	(mm)	(mm)
TR-013	1300	32	66	10
TR-025	2500	39	80	14
TR-050	5000	48	100	20
TR-075100	7500 - 10000	61	128	28
TR-150200	15000 - 20000	80	170	40
TR-320450	32000 - 45000	107	236	50
Used to position pin anchor and form a recess for the clutch.
