Electric Power Fittin Z Link Plate

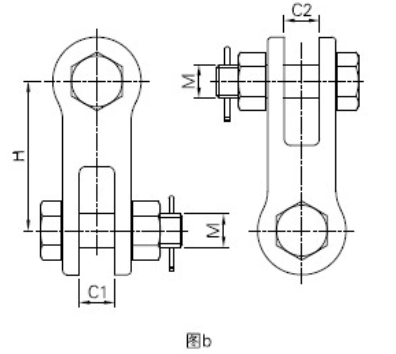

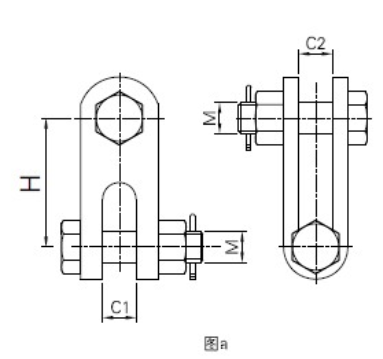

Z LINK PLATE
|
Cat.No. |
Dimension(mm) |
Failure Load(KN) |
Weight(kg) |
|||
|
C1 |
C2 |
M |
h |
|||
|
Z-7 |
18 |
18 |
16 |
80 |
70 |
0.56 |
|
Z-10 |
20 |
20 |
18 |
80 |
100 |
0.87 |
|
Z-12 |
24 |
24 |
22 |
100 |
120 |
1.16 |
|
Z-16 |
26 |
26 |
24 |
100 |
160 |
2.38 |
|
Z-21 |
30 |
30 |
27 |
120 |
200 |
3.80 |
|
Z-25 |
34 |
34 |
30 |
120 |
250 |
5.00 |
|
Z-30 |
38 |
38 |
36 |
120 |
300 |
5.80 |
|
Z-40 |
44 |
44 |
42 |
180 |
400 |
14.00 |
|
Z-50 |
44 |
44 |
42 |
120 |
500 |
8.60 |
|
Z-16G |
24 |
26 |
24 |
90 |
160 |
2.835 |
|
Z-21G |
24 |
26 |
24 |
90 |
210 |
3.60 |
|
Z-32G |
32 |
32 |
30 |
100 |
320 |
4.80 |
|
Z-42G |
36 |
38 |
36 |
110 |
420 |
5.20 |
|
Z-64G |
40 |
44 |
42 |
130 |
640 |
6.40 |
|
Z-0780 |
20 |
20 |
16 |
80 |
70 |
0.7 |
|
Z-1080 |
20 |
20 |
18 |
80 |
100 |
0.9 |
|
Z-12100 |
20 |
24 |
22 |
100 |
120 |
1.3 |
|
Z-16100 |
22 |
26 |
24 |
100 |
160 |
2.9 |
|
Z-21100 |
24 |
26 |
24 |
100 |
210 |
3.4 |
|
Z-25110 |
28 |
30 |
27 |
110 |
250 |
3.8 |
|
Z-32135 |
32 |
32 |
30 |
135 |
320 |
8.0 |
|
Z-42150 |
36 |
36 |
36 |
150 |
420 |
8.4 |
|
Z-64180 |
42 |
42 |
42 |
180 |
640 |
13.1 |
|
Z-84180 |
44 |
44 |
48 |
180 |
840 |
20 |
|
Z-110220 |
48 |
48 |
52 |
220 |
1100 |
35.3 |
Note:Split Pin-stainless steel, others-hot-dip galvanized steel

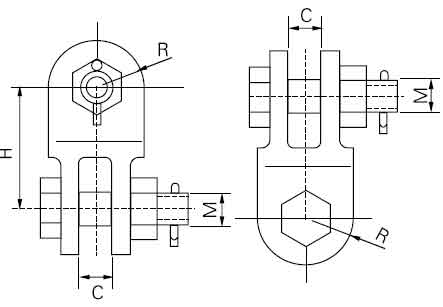

Link Clevis-clevis
|
Cat.No. |
Dimension(mm) |
Failure Load(KN) |
Weight(kg) |
|||
|
C |
R |
M |
H |
|||
|
Z1-25 |
34 |
40 |
30 |
100 |
250 |
2.8 |
|
Z1-30 |
38 |
46 |
36 |
135 |
300 |
5.4 |
|
Z1-40 |
42 |
50 |
36 |
150 |
400 |
8.6 |
|
Z1-60 |
50 |
62 |
48 |
180 |
600 |
19.6 |
Note:Split Pin-stainless steel, others-hot-dip galvanized steel
